02 Core AWS Storage Services

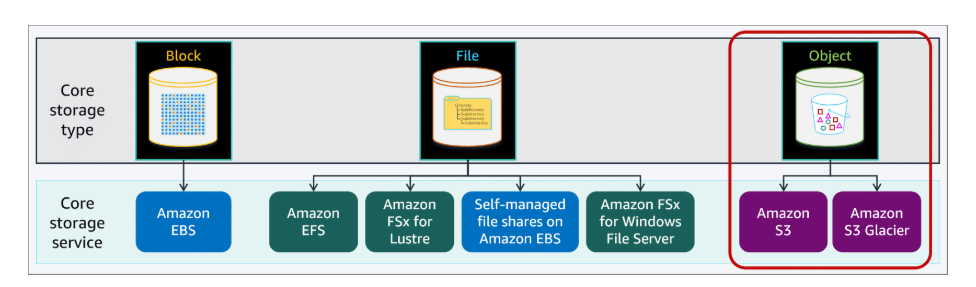

Storage Services

Block Storage​

Low latency for high-performance workloads.

EC2 instance Storage​

Ephemeral storage

will lost when :

  • The underlying disk drive fails
  • The instance stops
  • The instance hibernates
  • The instance terminated

EBS​

Designed for data can be quickly accessible and requires long-term persistence. suitble for file system, databases or any application that require fine-granular updates and access to raw.

Features:

  1. Single Avaliability Zone
  2. persistent
  3. Volume types
  4. Elastic volumes
  5. High avaliability
  6. Data encryption
  7. Native snapshot support
  8. AWS Backup support
  9. Performance monitoring

User cases:

  • Enterprise application
  • Relational database
  • Non-relational database/ NoSQL database
  • Big data analytics
  • File / Media Workflows

File Storage​

EFS​

Scalable, elastic, cloud-native file system for linux. support for NFS protocal.

  • Standard storage classes

Standard-Infrequent Access(Standard-IA), offer Multi-AZ resilience and highest levels of durability and avaliability.

  • One Zone storage classes

EFS One Zone IA and offer Single-AZ.

Features:

  • Full managed
  • High avaliability and durability
  • Storage classes and lifecycle management
  • Security and compliance
  • Scalable performance
  • Shared file systems with NFS v4.0 and v4.1 support
  • Performance modes(General Purpose or Max I/O)
  • Throughput modes(Bursting, Provisioned)
  • Elastic and scalable
  • Encryption
  • Containers and serverless file storage
  • Data transfer and backup

Use cases:

  • Containers and serverless persistent file storage
  • Move to managed file systems
  • Analytics and machine learning
  • Web serving and content management
  • Application testing and development
  • Media and entertainment
  • Database backup

FSx for Lustre​

AWS fully managed parallel file system built on Lustre for high performance computing (HPC) workloads.

Lustre is a open-source, high-performance file system.

Features:

  • High, scalable performance
  • Seamless access to data repositories
  • Simple and full managed
  • Native-file-system compliant
  • Cost optimized
  • Secure and compliant

Use cases:

  • Horizontal - Machine learning
  • Horizontal - High performance computing
  • Vertical - Genomics and life sciences
  • Vertical - Media processing and transcoding
  • Vertical - Autonomous vechicles
  • Vertical - SAS Grid computing

FSx(Windows Server)​

Amazon FSx for Windows File Server is an AWS fully managed file system for Windows environments.

FSx(NetApp ONTAP)​

Amazon FSx for NetApp ONTAP is the NetApp ONTAP operating system implemented as a fully managed service.

FSx(OpenZFS)​

Amazon FSx for OpenZFS is an AWS fully managed implementation of the Open Zettabyte File System (ZFS).

Object Storage : Amazon S3​

Amazon Simple Storage Service (Amazon S3) is an object storage service that offers industry-leading scalability, data availability, security, and performance.

Use cases :

  • Data lakes
  • Websites
  • Mobile application
  • Backup and restore
  • Archive
  • Enterprise application
  • IoT devices
  • Big data analytics

Features:

  • Management and monitoring

    • Storage management
    • Version control
    • Replication
    • Retention and compliance
    • Storage monitoring

  • Analytics and insights

    • S3 storage Lens

    S3 Storage Lens delivers organization-wide visibility into object storage usage and activity trends.

    • S3 Storage Class Analysis

    Amazon S3 Storage Class Analysis analyzes storage access patterns to help you determine when to transition less frequently accessed storage to a lower-cost storage class.

  • Access management and Security

    • Access management

      • IAM
      • ACLs
      • Access points with names and permissions
      • Query String Authentication with Temporary URLs(SignatureV4 ?)

    • On-premise connectivity

      Over AWS Direct Connect or AWS VPN

    • Encryption

      Use S3 management key(SSE-S3) or AWS Key management Service(KMS) keys

    • S3 Block Pulic Access

      S3 Block Public Access is a set of security controls that ensures S3 buckets and objects do not have public access.

    • Access Analyzer for S3

      Access Analyzer for S3 is a feature that monitors your bucket access policies, ensuring that the policies provide only the intended access to your S3 resources.

    • Amazon Macie

      You can use Amazon Macie to discover and protect sensitive data stored in Amazon S3.

  • Data Process and Query

    • S3 Object Lambda

      S3 Object Lambda uses AWS Lambda functions to process the output of a standard S3 GET request automatically.

    • Query in place

      • S3 Select
      • Amazon Athena
      • Amazon Redshift Spectrum

Use Cases:

  • Backup and restore
  • Disaster recovery
  • Archive
  • Data lakes and big data analytics
  • Hybrid cloud storage
  • Cloud-native applications
